SSO (Single Sign On)

SSO (Single Sign On) lets users log in to your app using an account they already have, so they do not need to create a new username and password for every service.

Backboard SSO lets your users log in or sign up using a Backboard account. Backboard SSO uses the OAuth 2.0 protocol for authentication and authorization. You redirect users to Backboard, they log in or create a new account, approve access, and your app gets back a verified identity with an access token.

For endpoint-level reference, see OAuth API Reference.

Once signed up, your users can also log in to the Backboard Dashboard to view their usage, manage their memories, and buy credits.

Think of it like “Sign in with Google” but for Backboard. Your users get a familiar login experience, and you get verified user info without handling passwords.

​

Backboard logo

Use the Backboard mark on Log in with Backboard buttons, settings screens, or anywhere you want users to recognize the integration.

​

How It Works

Here is what happens when a user clicks “Log in with Backboard” in your app:

​

Step by Step Setup

​

1. Register Your OAuth App

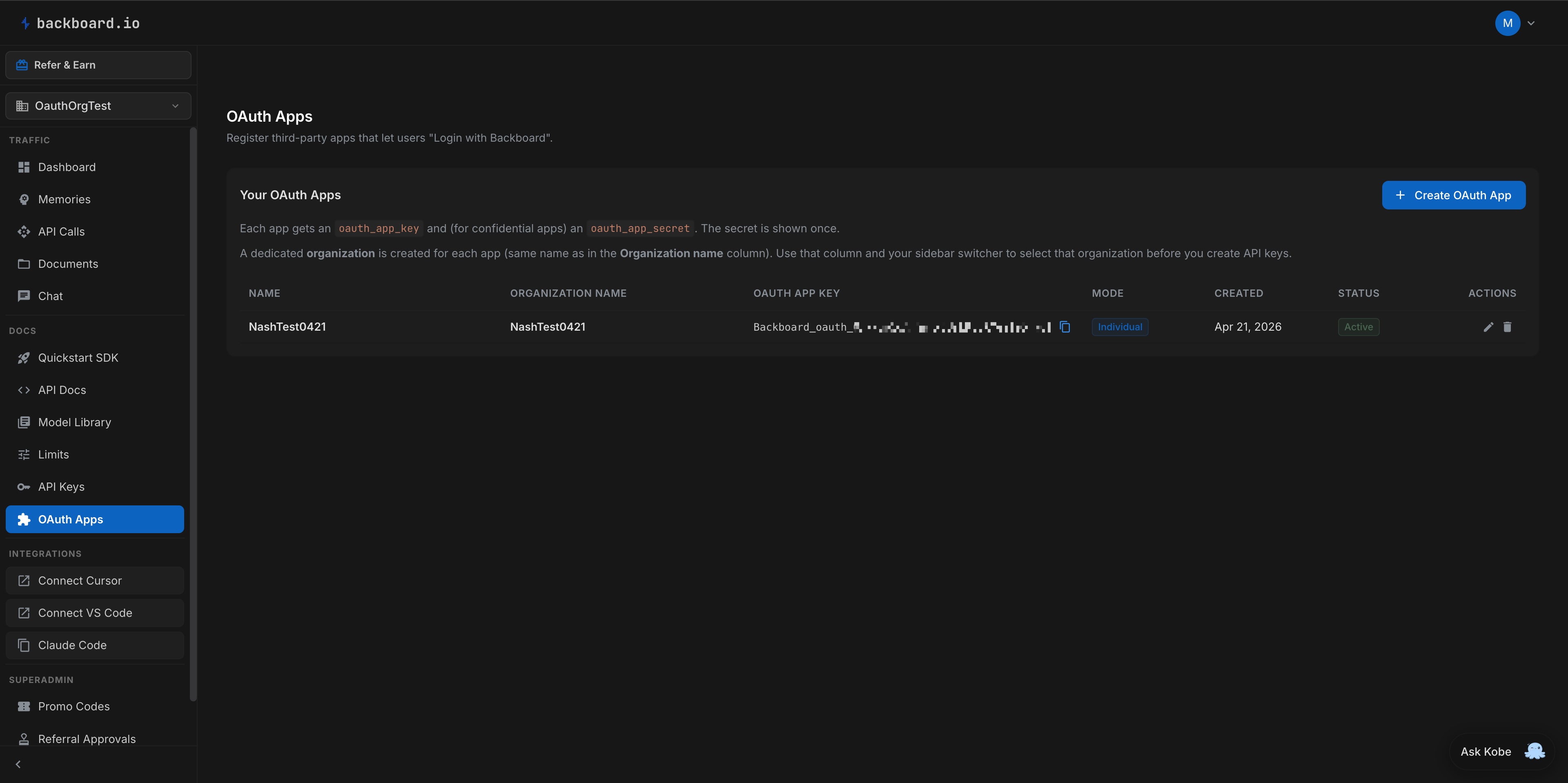

Go to the Backboard Dashboard and open OAuth Apps from the sidebar. Click Create OAuth App.

​

2. Save Your Credentials

After creating the app, you will see two values:

• OAuth App Key: your OAuth 2.0 client_id. Safe to embed in frontend code if needed.
• OAuth App Secret: your client_secret. Private; use only on your server or in a secret manager.

​

3. Create API_Key

If you choose individual mode for your app, you don’t need to do this.

If you choose organization mode, please follow the instruction below:

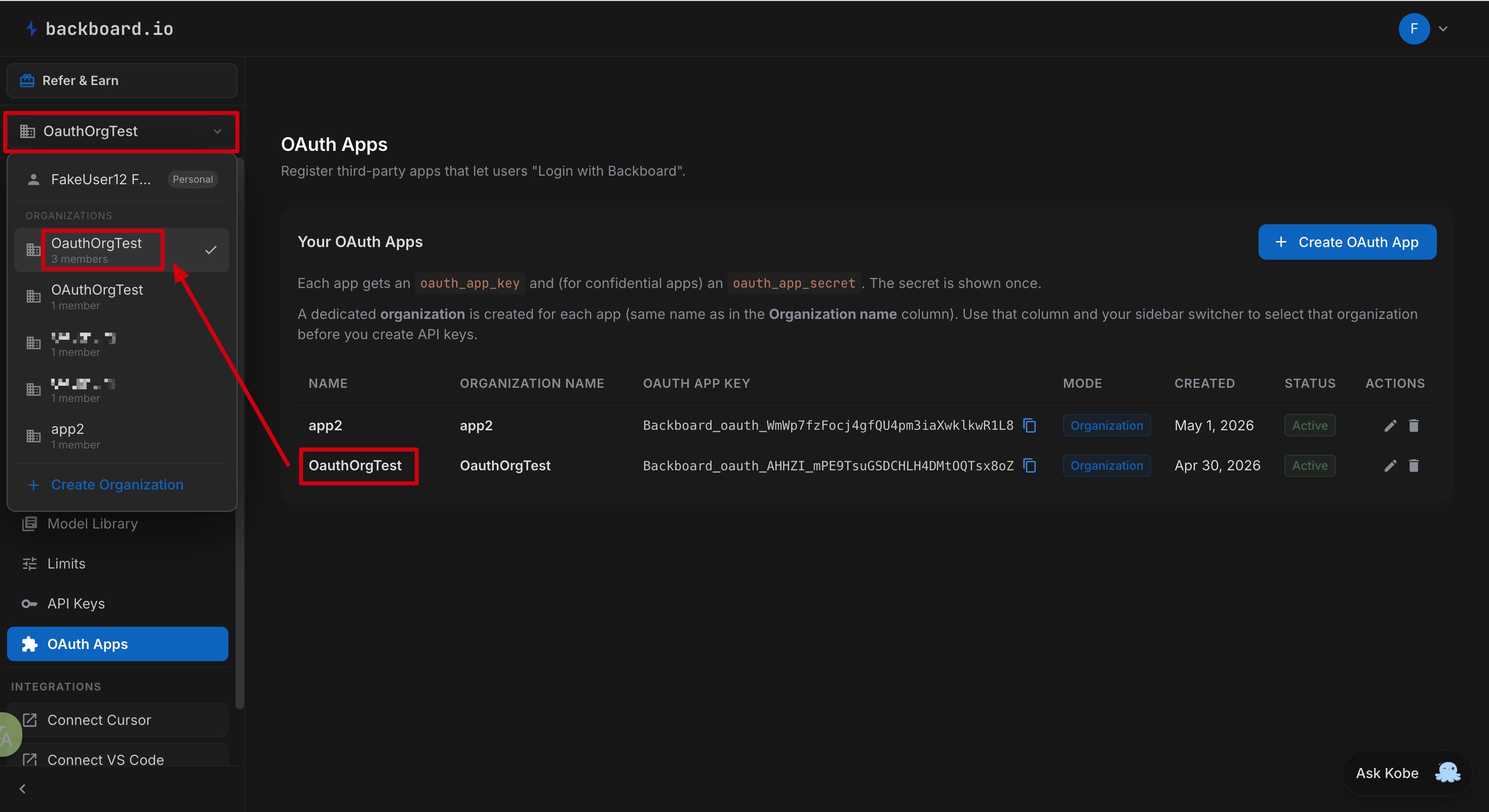

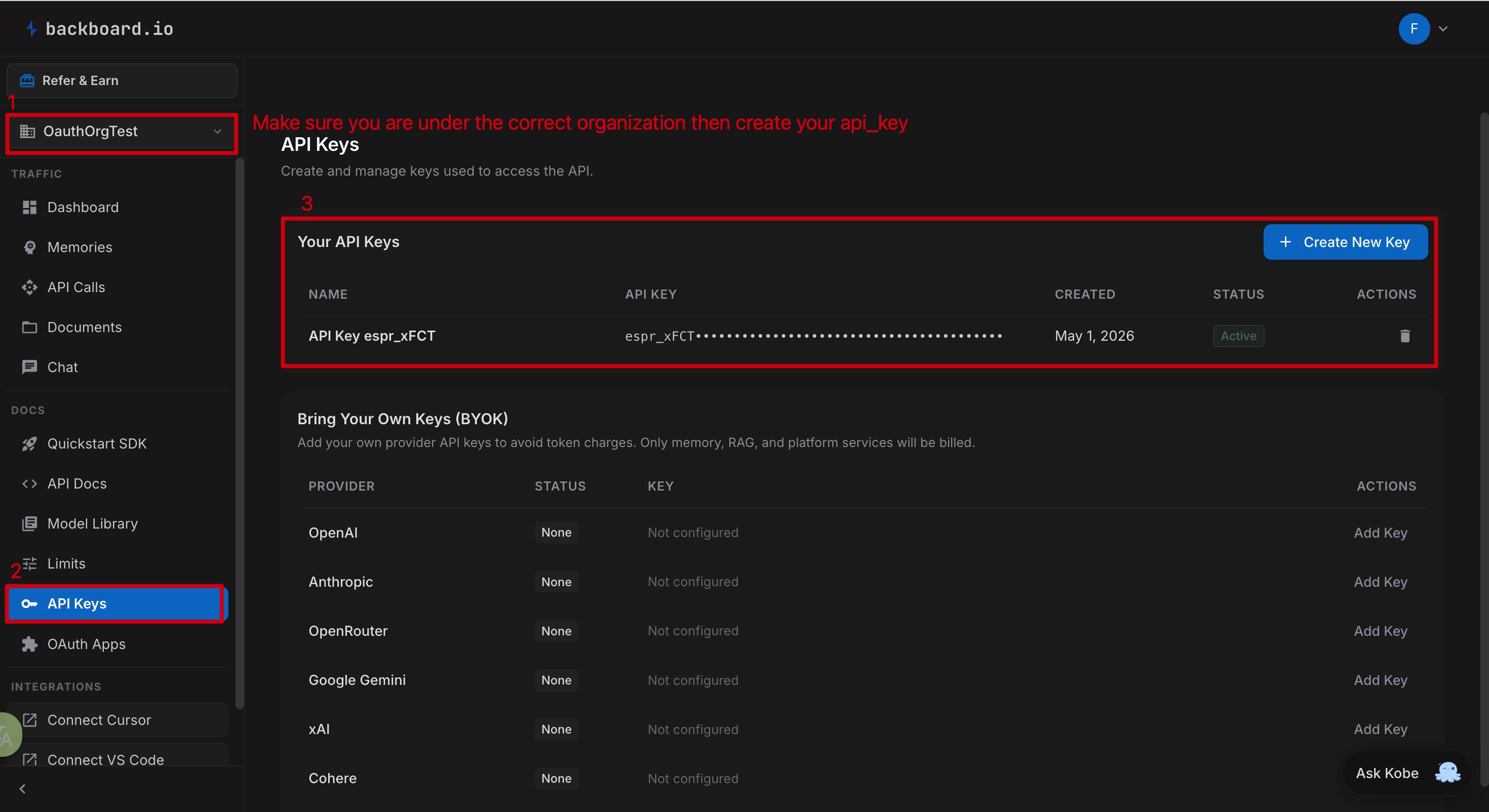

Go to the Backboard Dashboard and click the organization button (red box in the picture below) from the sidebar. Choose the organization with same name as your OAuth app, then create your api_key.

​

Building the Login Flow

​

Step 1: Redirect the User to Backboard

When the user clicks your “Log in with Backboard” button, you call the authorization endpoint GET /api/oauth/authorize with query parameters as in this example:

from urllib.parse import urlencode

params = {
    "client_id": "YOUR_OAuth_App_Key",
    "redirect_uri": "http://localhost:3000/auth/callback",
    "response_type": "code",
    "scope": "openid email profile",
    "state": "RANDOM_STRING",
    "code_challenge": "GENERATED_CHALLENGE",
    "code_challenge_method": "S256",
    "nonce": "OPTIONAL_RANDOM_STRING",
}
authorize_url = f"https://app.backboard.io/api/oauth/authorize?{urlencode(params)}"
# Redirect the user's browser to authorize_url (302 from your server or window.location)

It is a browser entry point. This means you are not posting JSON to a “REST” endpoint. You send the user’s browser to this URL so they leave your site briefly. The query string tells Backboard which OAuth app this is (client_id), where to send the user afterward (redirect_uri), what data you want access to (scope), CSRF protection (state), and optionally PKCE (code_challenge / code_challenge_method). Backboard then shows consent in the browser, your server does not receive tokens from this GET request.

​

GET /api/oauth/authorize

Request parameters:

Response

Success — HTTP 302

Error — HTTP 302 to your redirect_uri with error, error_description, and state (OAuth-style redirect errors).

Error — HTTP 400 JSON body (no redirect), for example invalid or unknown client / malformed request in cases where redirect is not used:

import json

body = {"error": "invalid_client", "error_description": "..."}
print(json.dumps(body, indent=2))

​

Step 2: Handle the Callback

After the user approves, Backboard redirects them to your redirect_uri with a code and state:

from urllib.parse import urlparse, parse_qs

# Example full URL the user's browser requests on your app
callback_url = "http://localhost:3000/auth/callback?code=Backboard_code_xxxxx&state=RANDOM_STRING"
query = parse_qs(urlparse(callback_url).query)
code = query["code"][0]
state = query["state"][0]

In your callback handler:

1. Check that the state in the URL is the same random string you generated in Step 1. If it does not match, reject the request (this prevents attackers from forging login attempts)
2. Take the code from the URL and exchange it for tokens by calling Backboard’s token endpoint (see Step 3 below)

​

Step 3: Exchange the Code for Tokens

Call this from your server only, never from the browser. Use POST /api/oauth/token with form data. Authenticate the OAuth app with client_id plus either client_secret (confidential) or code_verifier (public). See PKCE (Extra Security) for how code_verifier fits the full flow.

​

POST /api/oauth/token

Content-Type: application/x-www-form-urlencoded.

Client authentication: Send client_id. Also send client_secret (apps with a secret) or code_verifier (public apps, no secret).

PKCE: If /authorize used code_challenge, add code_verifier when you exchange the code. Do this even when you also send client_secret.

​

Authorization code (grant_type=authorization_code)

Request parameters

Response

Success — HTTP 200

App mode (sso_mode)

Context selection

When a user belongs to one or more organizations, the consent step records which context they chose:

Error — HTTP 400 / 401

Invalid or expired code, PKCE mismatch, redirect_uri mismatch, unknown client, bad client_secret, missing code_verifier when PKCE requires it, and similar.

To rotate access tokens without another login, use grant_type=refresh_token on the same endpoint. See Step 5: Refresh the Token.

​

Examples

import requests

response = requests.post(
    "https://app.backboard.io/api/oauth/token",
    data={
        "grant_type": "authorization_code",
        "code": "Backboard_code_xxxxx",
        "redirect_uri": "http://localhost:3000/auth/callback",
        "client_id": "YOUR_CLIENT_ID",
        "client_secret": "YOUR_CLIENT_SECRET",
    }
)

tokens = response.json()
access_token = tokens["access_token"]
refresh_token = tokens["refresh_token"]

Sample JSON (authorization code grant)

import json

sample = {
    "access_token": "Backboard_at_xxxxx",
    "token_type": "Bearer",
    "expires_in": 3600,
    "refresh_token": "Backboard_rt_xxxxx",
    "scope": "openid email profile",
    "id_token": "eyJhbGciOi...",
    "assistant_id": "abc123-def456",
    "backboard_api_key": "espr_xxxxx",
}
print(json.dumps(sample, indent=2))

​

Step 4: Get User Info (optional)

You do not have to call this endpoint. If openid was granted, the id_token from Step 3 already contains sub and often other claims. You can also use fields returned on the token response (for example assistant_id) without calling userinfo. Use GET /api/oauth/userinfo when you want a standard profile document from the access token, or you do not want to parse the JWT.

​

GET /api/oauth/userinfo

Success — HTTP 200 — JSON. Claims depend on token scopes:

Fields absent for unrequested scopes are omitted or null.

Errors

​

Examples

user = requests.get(
    "https://app.backboard.io/api/oauth/userinfo",
    headers={"Authorization": f"Bearer {access_token}"}
).json()

print(user["email"])         # "alice@example.com"
print(user["name"])          # "Alice Smith"
print(user["sub"])           # stable Backboard account ID for this user
print(user["assistant_id"])  # Backboard assistant ID

​

Step 5: Refresh the Token

Access tokens expire (default: 1 hour). Call POST /api/oauth/token again with grant_type=refresh_token. Same Content-Type: application/x-www-form-urlencoded and the same client authentication rules as Step 3 (client_id plus client_secret or code_verifier).

​

Refresh token (grant_type=refresh_token)

Request parameters

Response

Success — HTTP 200

Do not rely on id_token, assistant_id, or backboard_api_key on refresh; they are not set by this grant (they may be absent or null in JSON).

Error — HTTP 400 / 401

Invalid or already-used refresh token, client auth failure, expired refresh token, unsupported grant_type, etc.

​

Examples

response = requests.post(
    "https://app.backboard.io/api/oauth/token",
    data={
        "grant_type": "refresh_token",
        "refresh_token": "Backboard_rt_xxxxx",
        "client_id": "YOUR_CLIENT_ID",
        "client_secret": "YOUR_CLIENT_SECRET",
    }
)

new_tokens = response.json()
new_access_token = new_tokens["access_token"]
new_refresh_token = new_tokens["refresh_token"]

Sample JSON (refresh)

import json

sample = {
    "access_token": "Backboard_at_xxxxx",
    "token_type": "Bearer",
    "expires_in": 3600,
    "refresh_token": "Backboard_rt_newxxxxx",
    "scope": "openid email profile",
}
print(json.dumps(sample, indent=2))

Use client_secret or code_verifier on this call, same rules as Step 3.

​

Quick reference

​

PKCE (Extra Security)

PKCE (Proof Key for Code Exchange) is an extra layer of security that prevents attackers from stealing authorization codes. It is required for public clients (like mobile apps or single page apps) and recommended for all apps.

How it works:

1. Before redirecting the user, generate a random code_verifier (a long random string)
2. Hash it to create a code_challenge using SHA256
3. Send the code_challenge in the authorize URL
4. Send the code_verifier when exchanging the code for tokens

import hashlib
import base64
import secrets

# Generate verifier and challenge
code_verifier = secrets.token_urlsafe(32)
code_challenge = base64.urlsafe_b64encode(
    hashlib.sha256(code_verifier.encode()).digest()
).rstrip(b"=").decode()

# Use code_challenge in the authorize URL
# Use code_verifier in the token exchange (instead of client_secret)

When using PKCE, send code_verifier instead of client_secret in the token exchange:

import requests

response = requests.post(
    "https://app.backboard.io/api/oauth/token",
    data={
        "grant_type": "authorization_code",
        "code": "Backboard_code_xxxxx",
        "redirect_uri": "http://localhost:3000/auth/callback",
        "client_id": "YOUR_CLIENT_ID",
        "code_verifier": "YOUR_CODE_VERIFIER",
    },
)
tokens = response.json()

​

Revoking Tokens

If a user wants to disconnect your app, or you need to invalidate a token for security reasons:

​

POST /api/oauth/revoke

RFC 7009-style revocation. client_id and client_secret are both required` (revocation cannot be done with PKCE-only).

Success 200 — empty JSON object:

import requests

response = requests.post(
    "https://app.backboard.io/api/oauth/revoke",
    data={
        "token": "Backboard_at_xxxxx",
        "client_id": "YOUR_CLIENT_ID",
        "client_secret": "YOUR_CLIENT_SECRET",
    },
)
assert response.json() == {}

Errors 401 — missing credentials or invalid client_id / client_secret.

This works for both access tokens and refresh tokens.

​

Common Mistakes
